KCD1-105C

KCD1-105C
Product information
Categories
KCD1
Brand
Model
KCD1-105C
FOB Port
Ningbo, Shanghai
Terms of Payment
Western Union,T/T Paypal
Update
12/09/2019
Product Description
Specifications
Rating 6A/250V AC
Environment Temperature -25℃~85℃
Contact Resistance ≤50mΩ
Insulation Resistance ≥100mΩ(at 500VDC)
Withstand Voltage Terminal-Terminal 1500V AC/10mA/5s
Terminal-Konb 3000V AC/10mA/5s
Electronical life 10000 Cycles
Operating Force 4N~7N

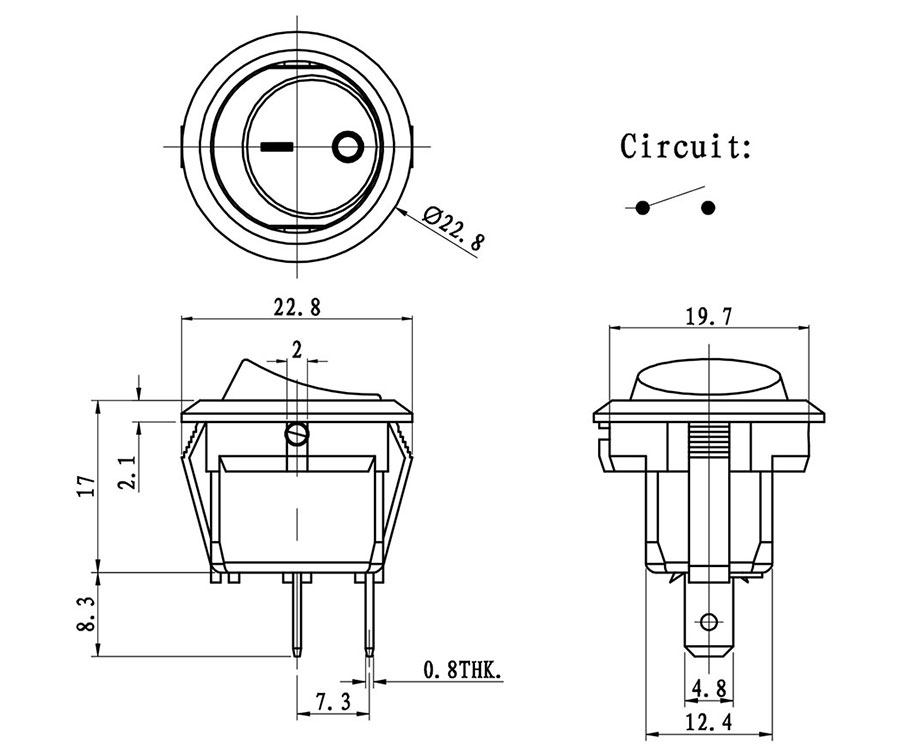

Electrical schematic

Electrical schematic

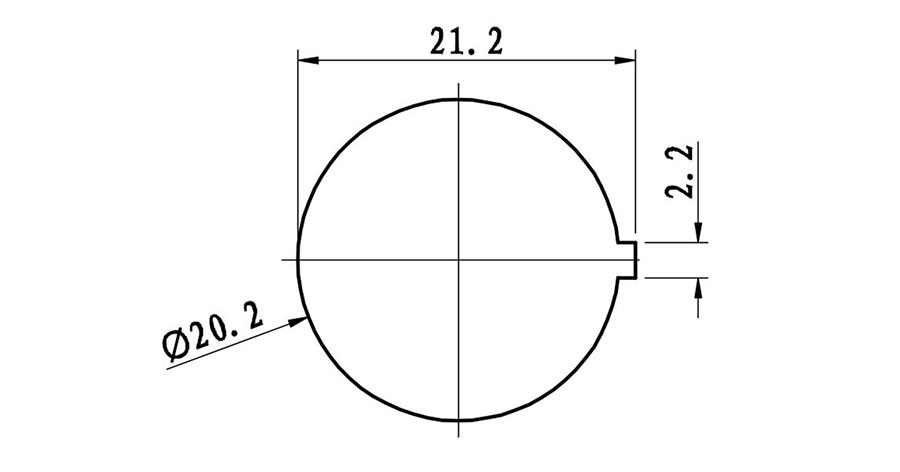

Mounting

Mounting
